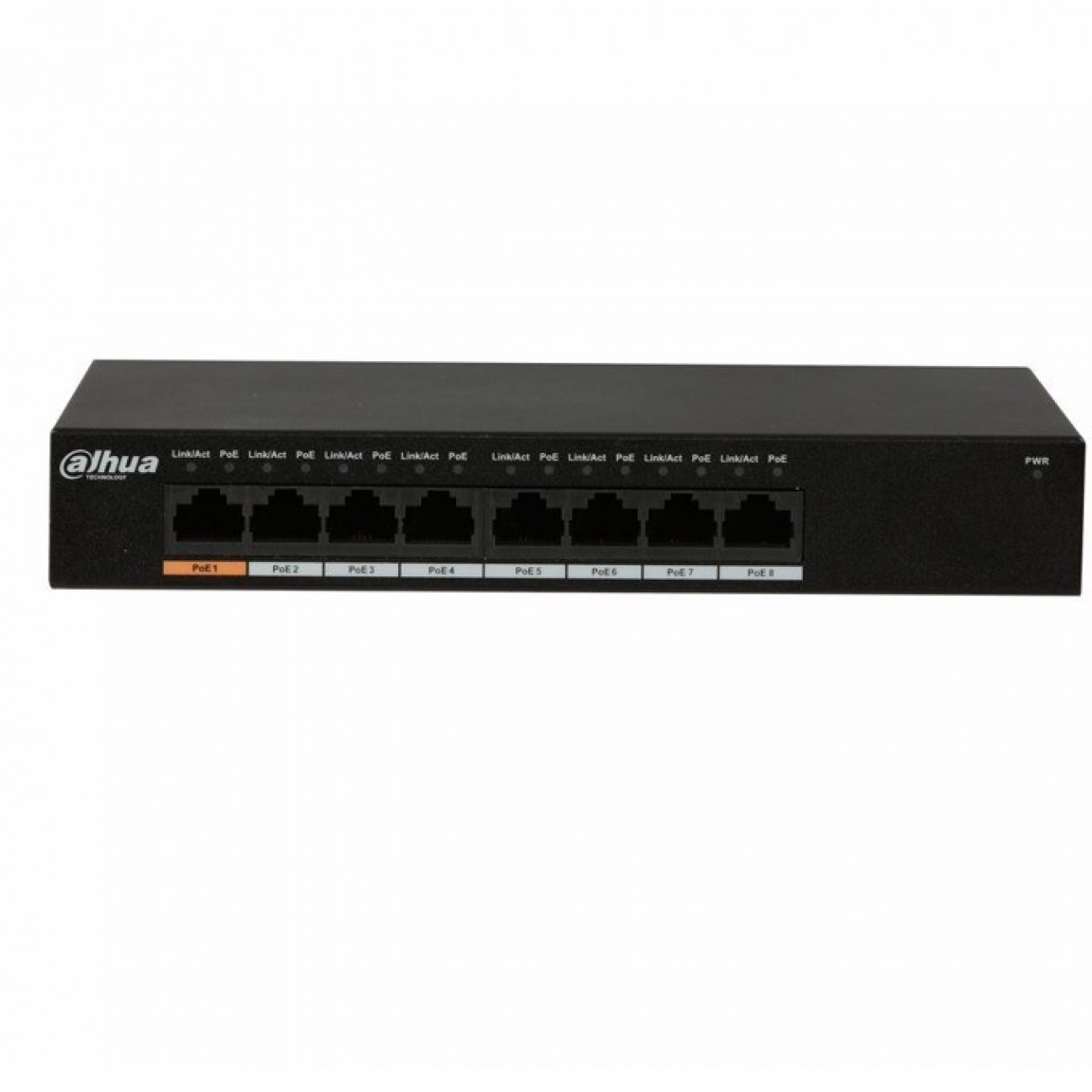

PFS3008-8GT-96
Product Overview:
PFS3008-8GT-96 is a 8-port Gigabit Ethernet switch, which provides
8*10/100/1000Mbps PoE port and supports Hi-PoE power supply.
Features:
Layer two commercial switch
Supports IEEE802.3, IEEE802.3u and IEEE802.3X standards
MAC auto learning, aging, MAC address capacity is 8K
Supports MDI/MDIX self-adaptation
RJ45 port supports 10/100/1000 Mbps self-adaptation
Supports IEEE802.3af and IEEE803.3at power supply
standards
Adopts metal enclosure
Supports Hi-PoE 60W
Supports DC 48-57V power supply
Technical Specification:
Model: PFS3008-8GT-96
Ethernet Port: 8*10/100/1000Mbps PoE ports
PoE Power Consumption: Port1≤60W, Port2-8≤30W, Total≤96W
PoE Protocol: IEEE802.3af (PoE), IEEE802.3at (PoE+), Hi-PoE
Switching Capacity: 20Gbps
Packet Forwarding Rate: 11.9Mpps
Packet Buffer Memory: 1.5Mb
MAC Table Size: 8K
Flow Control: Enable by default
Application Humidity: 10%~90%
Power: DC48~57V power adapter
Lightning Protection: Common Mode 2KV, Differential Mode 0.5KV
Working Temperature: -10°C~+55°C
Weight: 0.49kg
Dimension(W×D×H): 190mm×100mm×30mm
