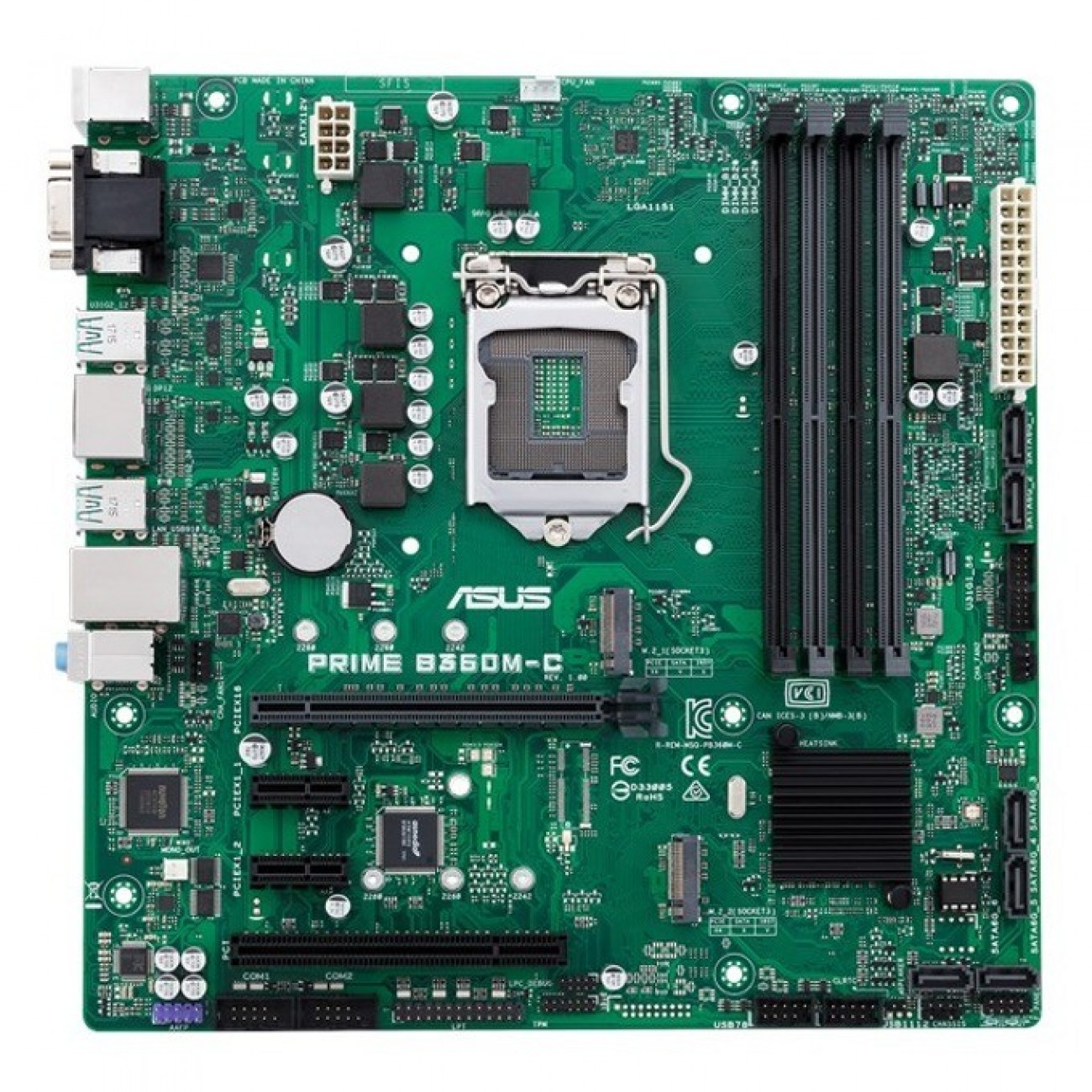

Дънна платка Asus PRIME B360M-C, B360, DDR4, PCI-E(DP&HDMI), 6x SATA 6Gb/s, 2x M.2 Socket 3, 4x USB 3.1 (Gen 2), uATX

190.64 лв.
Предлагано от:

JAR computers

4.6

(16) Ревюта

Производител:Asus
Модел: PRIME B360M-C
Наличност: Налично
100 000 доволни клиенти
Продукти на конкурентни цени
Бърза и сигурна доставка
Проверка на пратката
Сигурно плащане

Описание

Asus PRIME B360M-C


- ASUS-exclusive self-recovering BIOS technology for automatic system BIOS recovery from a verified backup
- Dedicated LPC header and debug card with LCD display for faster troubleshooting
- Event log for capturing and managing detailed system information
- Innovative moisture-resistant coating to protect the motherboard from harsh environments
- Commercial BIOS kit to make customization faster and more efficient

CPU
Intel® for 8th Generation Core™ Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list

Chipset
Intel® B360

Memory
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Supports Intel® Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.

Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : HDMI/RGB/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Supports up to 3 displays simultaneously

Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 3.0/2.0 x1
1 x PCI

Storage
Intel® B360 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (x4 PCIE mode)
6 x SATA 6Gb/s port(s)
Intel® Optane™ Memory Ready

LAN
Intel® I219V, 1 x Gigabit LAN Controller(s)

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *1
- Supports : Jack-detection, Front Panel Jack-retasking

USB Ports
Intel® B360 Chipset :
4 x USB 3.1 Gen 2 port(s) (4 at back panel, , Type-A, 2 at mid-board)
Intel® B360 Chipset :
2 x USB 3.1 Gen 1 port(s) (2 at mid-board)
Intel® B360 Chipset :
6 x USB 2.0 port(s) (2 at back panel, , Type-A, 4 at mid-board)

Special Features
Bespoke Motherboard Design & Business Focused Features :
- ASUS Self Recovering BIOS: Automatically recover BIOS update once crash happen
- ASUS Event Log: Record activities of system and provides information in BIOS
- ASUS Commercial BIOS kit: Speed up BIOS update solutionby partial BIOS design
- Anti-Moisture: Against moisture and corrosion — prolonging the life of your motherboard
- 24/7 Reliability: Tested under temperature up to 45°C and humidity up to 80% to ensure handle diverse environment
Easy Assembly Design:
- Fixed-position&Color-coded Connectors: Enable easy identification and cable-matching, speeding up the production line
- Box Headers: USB headers are box style, enabling fast connector installation and preventing pin damage
Digi+VRM

Operating System Support
Windows® 10

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
2 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 ()Type-A
2 x USB 2.0
3 x Audio jack(s)

Internal I/O Ports
1 x MONO out header *2
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (PCIE mode only)
1 x LPT header
2 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
1 x Chassis Intrusion connector(s)
1 x 14-1 pin TPM connector
1 x LPC Debug header


BIOS
128Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS smart recovering BIOS, ASUS Event log, ASUS Commercial Kit

Manageability
WOL, PXE

Support Disc
Watch dog timer, Drivers

Form Factor
uATX Form Factor
9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

Note
*1: Use a chassis with HD audio module in the front panel to support an 8-channel audio output.
*2: Use with amplified speaker is suggested.
