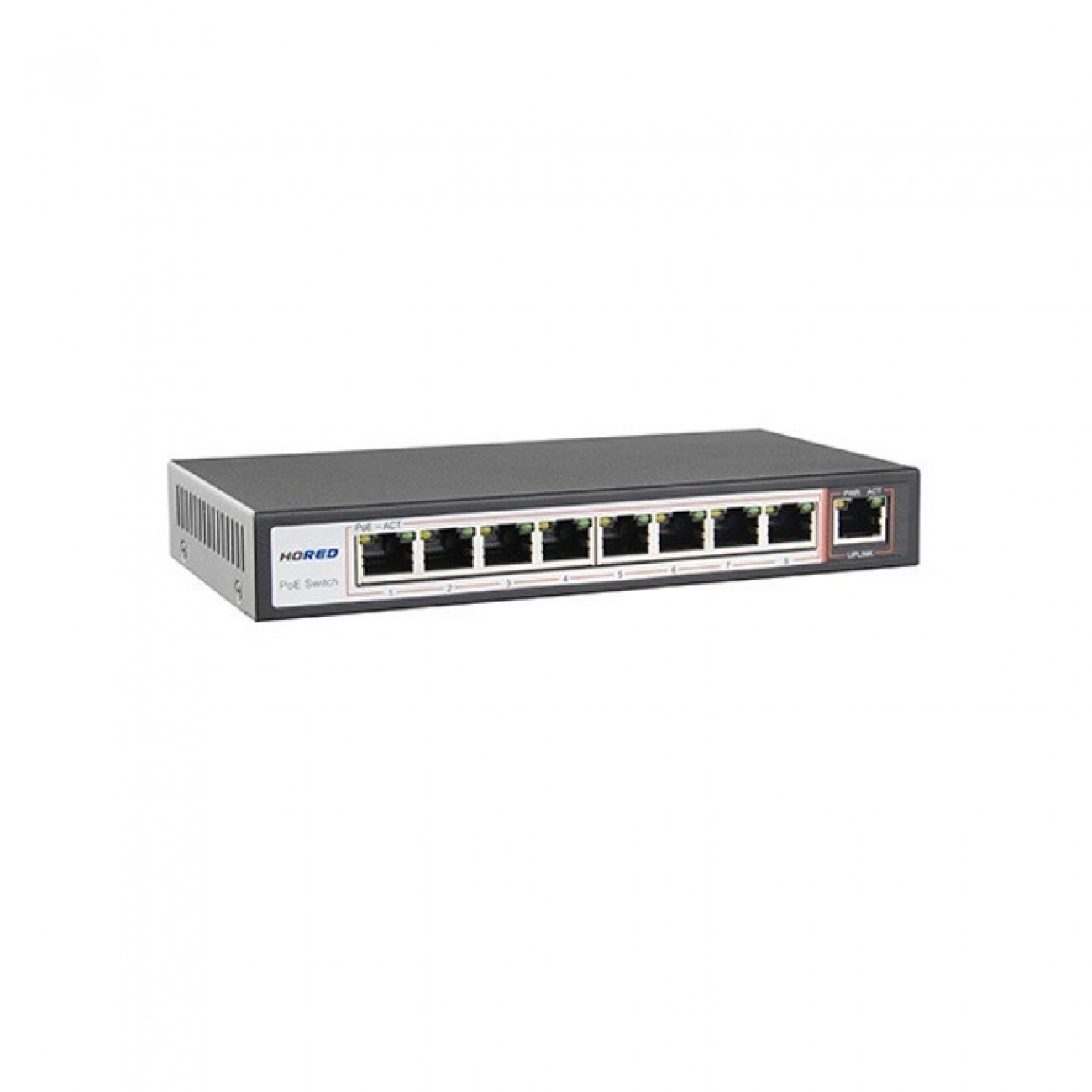

Hored PS5081

PS5081E is 9 port 100Mbps with 8 PoE port switch, auto detection and identification IEEE802.3af/at standard PD device, then carry power to it. Therefore do not worry it will destroy the private standard PoE or Non-PoE equipment.
PS5081E is the best choice for minitype commercial network because it economically use PoE deployment wireless AP and IP camera . It can resolve the problem of maintenance tedious, wireless coverage, terminal device powered, surveillance project. Maximum save the cost.


Network Port
· 8 10/100Mbps PoE RJ45 port(port 1~port 8)
· 1 10/100Mbps Non-POE RJ45 port(port 9)

Transmission Rate
· 100Mbps full Duplex,10 or 100Mbps Half Duplex
· Network interface:10BASE-T or 100BASE-TX Ethernet RJ-45 port

Performance
· bandwidth:1.8Gbps (non-blocking)
· network delay(100 to 100M bps):maximum 20 μs(using 64 byte packet)
· MAC address capacity:1K
· Frames filter and transmission rate:
10M port maximum 14,800pps
100M port maximum 148,800pps

Network protocol and standard
· IEEE 802.3i 10BASE-T
· IEEE 802.3u 100BASE-TX
· IEEE 802.3x Flow Control
· IEEE 802.3af Power over Ethernet
PoE pin
1/2(+),3/6(-);or customized 4/5(+),7/8(-);
LEDs indicator
· Power
· LINK/ACT 、PoE

Power
•Total power 96W ( port1~port8), single port max 15.4W
• Input power:96W;DC48V /2A output power;
(Each country use customized power plug)

Dimensions
· Size(LxWxH):184mm x 94mm x 27mm
· Weight:0.9 kg

Environment
· Operating Temperature:0°~40°C(32°~113°F)
· Storage Temperature:-20℃~90℃(-4°~194°F)
· Working Humidity:10%~90% (Non-condensing)
· Storage Temperature:5%~90% (Non-condensing)
EMC
· CE Class B
· FCC Part 15,Class B
· VCCI Class B
· C-Tick

Certifications
· CE/RoHS/FCC

Support power over ethernet cable device for example wireless AP and IP camera
Ø Support IEEE802.3af/at standard .
Transmission distance 250m, it can be flexible installation for wireless AP and surveillance project.
It will give the speed of 10Mbps at 250meter when connect IP cameras.
Support upward port auto MDI/MDIX.
Adopted storage forward switch system.
Smart power and minimum consumption,guarantee PD requirement.
With power supply circuit protection function and protection back-end device safety
Automatically provide the adaptive device
PSE modular design
Support loop circuit detection
Support saving power function when port unconnection
