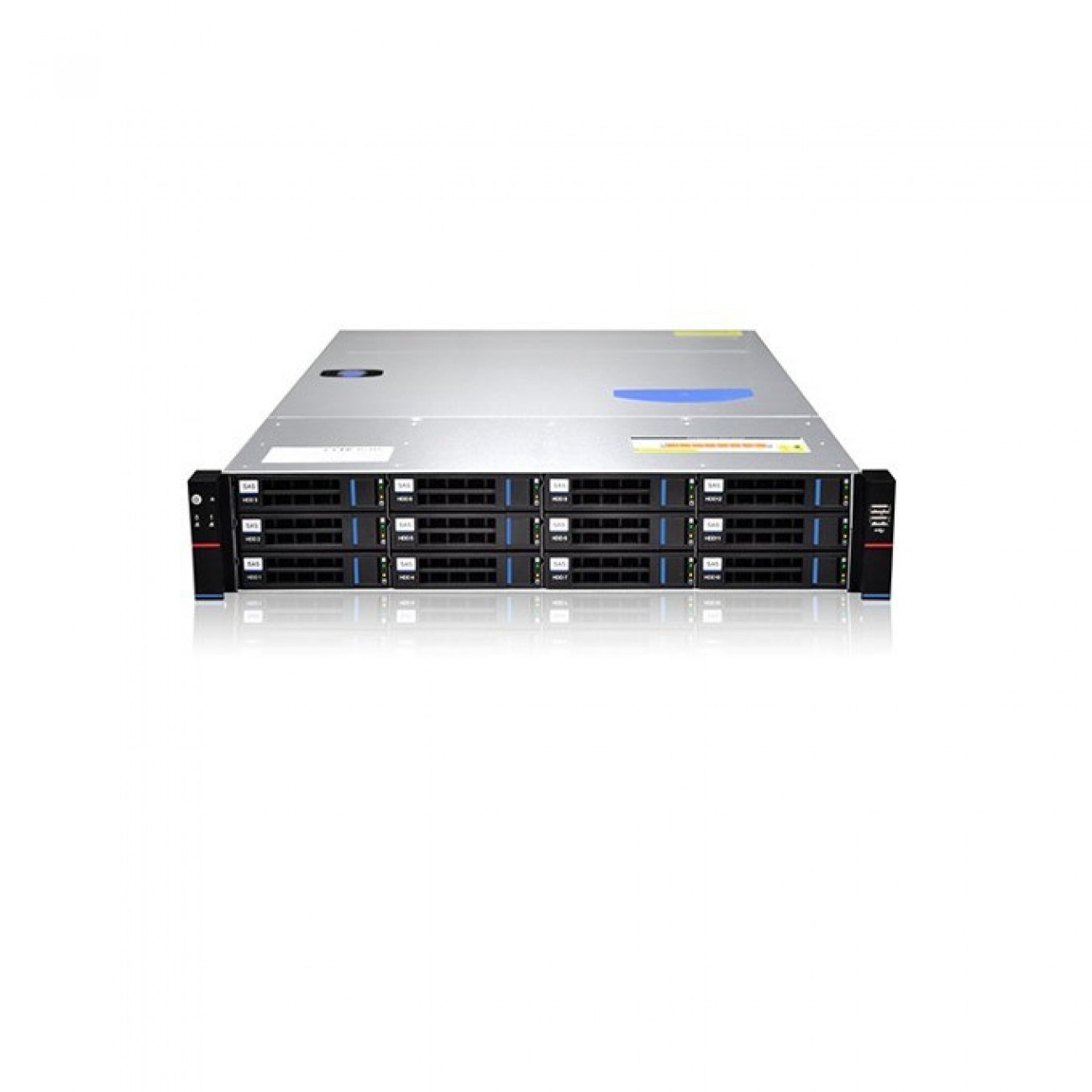

2U rackmount server chassis, depth 670mm; ●Support M/B size up to EEB (12” *13”); ●Support 12*2.5” SATA/SAS hot-swap HDD, and optional rear 2*2.5” SATA/SAS hot-swap HDD; ●12Gb SAS Backplane with expander; ●Support intelligent control of temperature, reduce noise and heat. ●Configured with 3*8038 hotswap cooling fan; ●Anti-vibration cooling fan to protect HDD; ●1+1 redundant PSU Delta 800W 80+ Platinum; ●7*PCIe Half & Length expansion slot ●Compliant with standard 19” rackmount; ●Ideal solution for HPC, WB, Data Center, FTP server and storage server, etc.
Basic Parameters Chassis style Rack mount Chassis structure 2U Applicable motherboard EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX Supported motherboard brands Gooxi、Intel、ASUS、SuperMicro、TYAN、MSI、GIGABYTE, etc Power type Single charge and 1+1 redundant power Number of supported power supplies 1 SGP10 Support Backplane 12Gb/s SAS data backplane Supported hot-swappable hard drives Supportive, compatible with SAS and SATA drives Supported hot-swappable hard fans Support Hard disk site 12 3.5-inch (or 2.5-inch) hot-swappable hard disk sites; two optional 3.5 inch or 2.5-inch non-hot-swappable expandable sites Hard disk shockproof system Hard disk bracket is designed with EMI shrapnel. The unique shockproof fan design can reduce the resonance between the fan and hard disk without affecting the I/O speed of hard disks. Cooling system Three 8038 fans are the standard configuration Windshield Optional configuration Intelligent control of temperature Support Expanded card site 7 half-height PCI or PCI-E expansion card sites, and 3 optional transversal full-height expansion card sites Supported rails Optional
Apparent Parameters Front panel interface 2 USB, 1 on-off key, 1 restart key, 1 hard disk indicator, 1 system failure light, 2 network indicators Free screws dismantle Support Fixed mode of cabinet Ordinary
