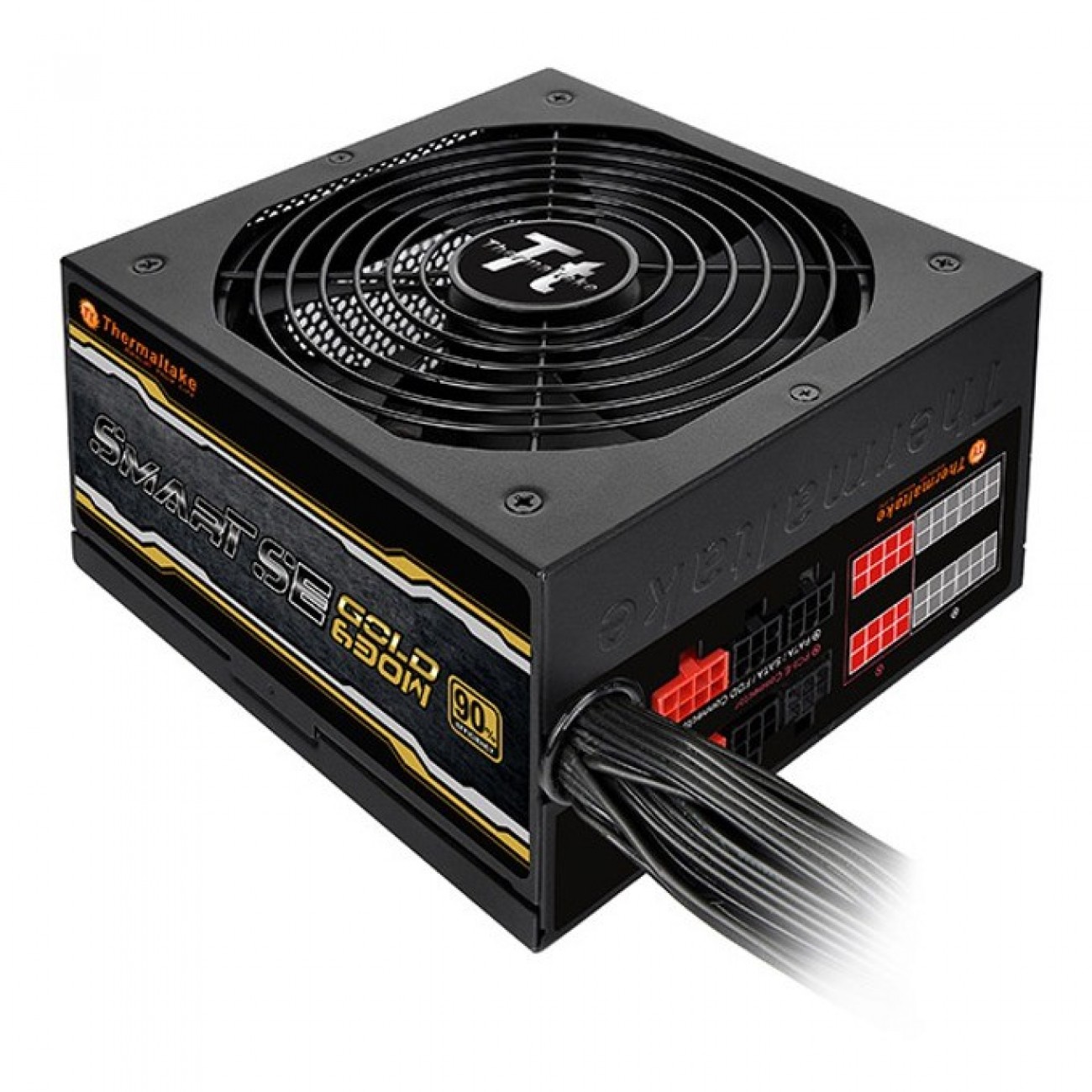

The Thermaltake SMART SE series are power supply units (PSU) that incorporate various high-tech components, leading technology and Eco-friendly commendations, ranging between 530W to 730W with a semi-modular that will always accommodate any mainstream build under any circumstance. Embedded ultra-quiet fan delivers silent cooling with intelligent RPM control system. Single strong 12V rail flexibly routes the maximum available power to your CPU and graphic cards, offering maximized power usage and easy setup.
Ultra-quiet Fan A large embedded ultra-quiet 140mm cooling fan that delivers an excellent airflow with an exceptionally low noise level and an intelligent RPM control system, which automatically detects the power load for fan speed adjustment and maintains an optimal silent operation.
Outstanding Power Efficiency Delivering up to 90% efficiency at a 20%-70% capacity under real life loading world loading conditions to cut down on electric costs by saving on any unnecessary waste of energy to continually protect our environment, while supporting the criteria for the Energy Star 5.0 standard.
Modular Cable The customizing concept of the Smart SE 530/630/730W enables users to maximize all the available power and making a stress-free setup.It is a semi-modular power supply that offers cable selection for users while powering the system at an advantageous voltage.
Model SPS-630AH3CCG Type Intel ATX 12V 2.3 Max. Output Capacity 650W Peak Output Capacity 780W Color Black Dimension （ W / H / D ） 150mm(W) x 86mm(H) x 160mm(L) Peak Output Capacity Active PFC Power Good Signal 100-500 msec Hold Up Time 16msec (minimum) at 80% of full load at 230Vac input. Input current 5A Input Frequency Range 47Hz - 63Hz Input Voltage 200VAC - 240VAC Operating Temperature 0℃ to +40℃ Operating Humidity 20% to 90%,non-condensing Storage Temperature -20 ℃ to +70 ℃ Storage Humidity 5% to 95%, non-condensing Cooling System 14cm Sleeve Fan: 1900RPM ± 10% Efficiency Deliver up to 90% efficiency MTBF 100,000 hrs minimum Safety Approval CE, TUV, GOST PCI-E Connector PCI-E 6+2pin x 2
